Data Acquisition Hardware

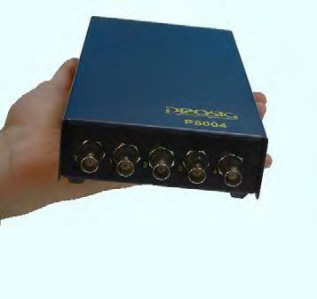

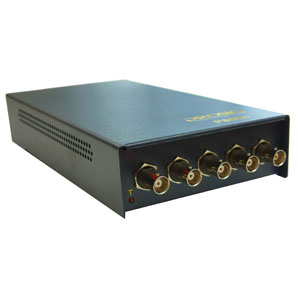

P8004 - Ultra Portable
  • Small, light, ultra portable
  • 24-bit precision
  • Sample at up to 400k samples/second/channel
  • 4 analog channels plus tacho input
  • 102dB dynamic range
  • -120dB noise
  • USB 2.0

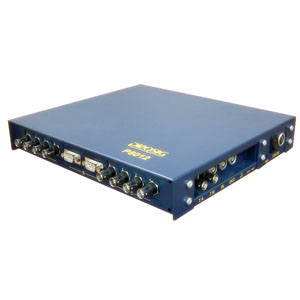

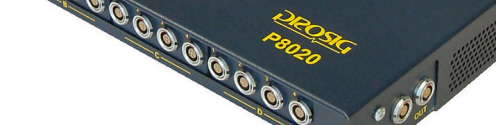

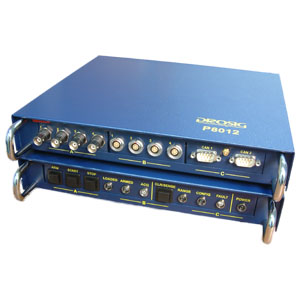

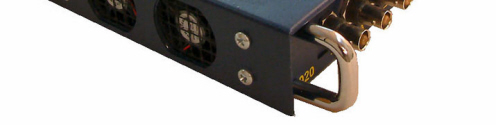

P8012/8020 - Mobile

  • P8012 - 3 card chassis
  • P8020 - 5 card chassis
  • Up to 40 analog channels plus tacho
  • 24-bit precision
  • Up to 100k samples/second/channel (24 bit)
  • Up to 400k samples/second/channel (16 bit)
  • 102dB dynamic range
  • -120dB noise floor
  • USB 2.0

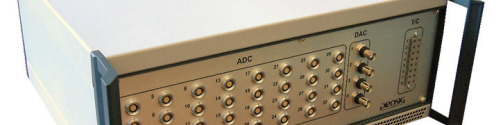

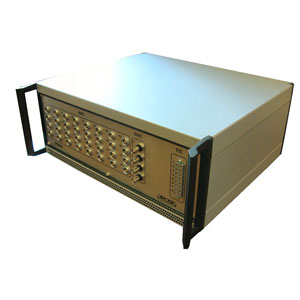

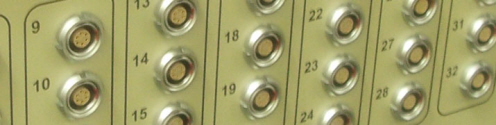

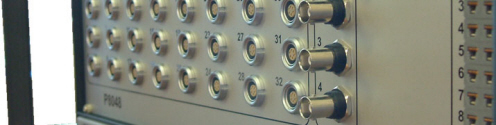

P8048 - Portabe High Channel Count

  • High channel count
  • 12 cards per chassis
  • Multiple chassis up to 1024 analog channels
  • 24-bit precision
  • Up to 100k samples/second/channel (24 bit)
  • Up to 400k samples/second/channel (24 bit)
  • 102dB dynamic range
  • -120dB noise floor
  • USB 2.0

Prolog - Remote or Standalone Data Capture/Converter

  • Operates your P8000 without a laptop
  • Remote operation of P8000 via Ethernet
  • Allows standalone or unattended operation
  • Upto 256GB solid state memory


P8000 Input & Output Channel Options

The P8012, P8020 and P8048 can be configured with a number of different input and output cards. The following cards are available...

  • 4 channel high speed analogue and 1 channel tachometer input card, with BNC connectors
  • 4 channel high speed analogue and 1 channel tachometer input card, with 6 pin LEMO connectors
  • 4 channel high speed analogue charge input card
  • 8 channel thermocouple input card, with universal thermocouple connector
  • 8 channel analogue input card with IEPE support, with 50 way D type connector
  • 8 channel analogue input card with programmable excitation, with 50 way D type connector
  • 4 channel precision tachometer measurement input card, with BNC connectors
  • 4 channel digital to analogue output card, with optional digital I/O, BNC connectors
  • 2 channel CAN-BUS input card, with 9 way D type connectors

8408 - 8 ch Thermocouple
For further details please visit www.prosig.com
